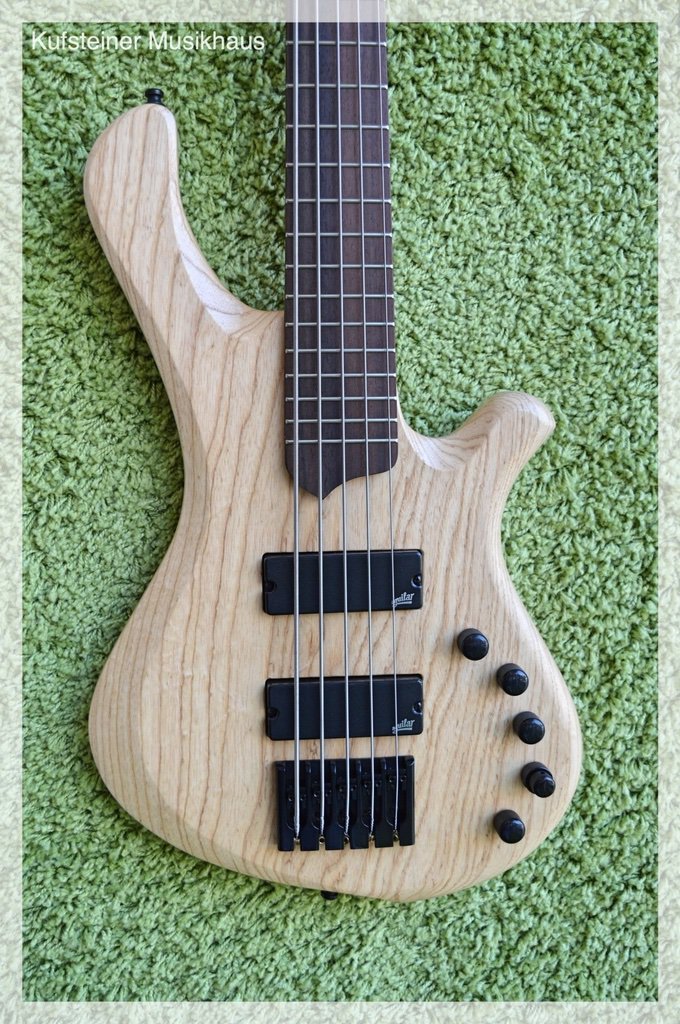

Body
Swamp Ash – flat top contoured

Construction
Bolt – on

Neck
5-ply / Mahogany-Maple
Two additional graphite rods
Dimensions:
4 string 5 string
Width at nut 41 mm 45 mm
Width XII fret 56 mm 62 mm
Width XXIV fret 63.5 mm 70.8 mm
Thickness I fret 21 mm 21 mm
Thickness XII fret 23 mm 23 mm

Fingerboard
Rosewood

Fingerboard Radius
20" (508 mm)

Scale
34.25" (870 mm)

Frets
24 medium jumbo 18%NS Ferd Wagner 9665 2.64×1.20 mm (w×h)

Markers & inlays
Plain, no markers + side dots

Headstock
Angled

Tuners
WSC De Luxe Mini; BLK

Bridge
WSC De Luxe Bass
Pitch: 4 string 5 string
19 mm 17 mm

Pickups & Electronics
H-H / Aguilar Soapbar (DCB-G Dual Ceramic Magnet Passive Set)
Mayo M-BP3 bass preamp (3 band)

Control
Volume (push-pull – Active/Passive mode) + Balance + Middle + Treble/Bass + ToneControl

Knobs
Standard metal dome knobs
Q-Parts knobs / Extra fee required

Body finish
Transparent Natural Matt (T-NAT-M)

Neck finish
Transparent Natural Matt (T-NAT-M)

Headstock finish
Body matching

Hardware colour
BLK (black)

Strings
SIT Bass – NR45100 Nickel [4]
SIT Bass – NR45125 Nickel [5]

Additional equipment
Graph Tech nut, Switchcraft jack, Schaller Security Straplocks, Hardcase
Separate 9V battery compartments
